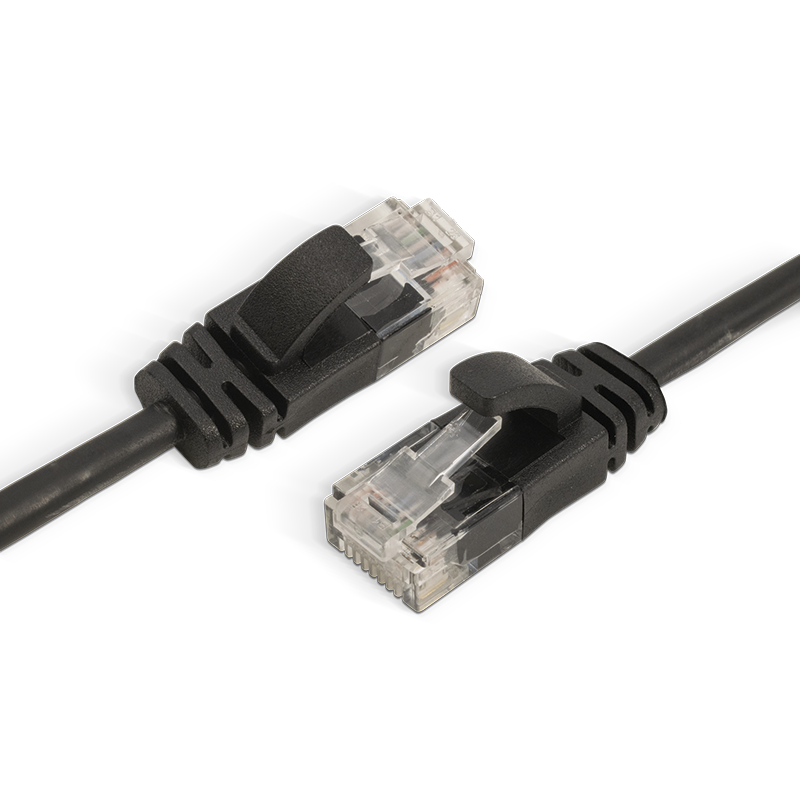

Latiguillo SLIM - Cat. 6 y 6A U/UTP
Descripción
· Los conductores de los latiguillos Cat. 6 y
6A U/UTP están fabricados en cobre trenzado flexible, con capuchones
termosellados que facilitan y garantizan la instalación en aplicaciones
de alta densidad.
· Ofrece un gran rendimiento combinado con los
Keystones, patch panels y cables de GAESTOPAS.
· El 100% de los
cables han sido testados.
· Radio mínimo de curvatura: 4D (UTP).
Materiales
Conductor 100% cobre.
Revestimiento exterior de LSZH baja emisión de gases y libre de halógenos.
Revestimiento exterior de LSZH baja emisión de gases y libre de halógenos.
Color revestimiento exterior
Blanco
Negro
Azul
Verde
Negro
Azul
Verde
| Reference | Cable type | Category | Length | Type of connector connection 1 | Type of connector connection 2 | Colour outer sheath | AWG-size | Pin assignment | NVP value | Embalaje |
|---|---|---|---|---|---|---|---|---|---|---|
| CLS016A3.015 | U/UTP | 6A | 0,15 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A3.025 | U/UTP | 6A | 0,25 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A3.05 | U/UTP | 6A | 0,50 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A3.10 | U/UTP | 6A | 1,00 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A3.20 | U/UTP | 6A | 2,00 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A3.30 | U/UTP | 6A | 3,00 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A3.50 | U/UTP | 6A | 5,00 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A4.015 | U/UTP | 6A | 0,15 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A4.025 | U/UTP | 6A | 0,25 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A4.05 | U/UTP | 6A | 0,50 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A4.10 | U/UTP | 6A | 1,00 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A4.20 | U/UTP | 6A | 2,00 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A4.30 | U/UTP | 6A | 3,00 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A4.50 | U/UTP | 6A | 5,00 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A7.015 | U/UTP | 6A | 0,15 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A7.025 | U/UTP | 6A | 0,25 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A7.05 | U/UTP | 6A | 0,50 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A7.10 | U/UTP | 6A | 1,00 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A7.20 | U/UTP | 6A | 2,00 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A7.30 | U/UTP | 6A | 3,00 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A7.50 | U/UTP | 6A | 5,00 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A8.015 | U/UTP | 6A | 0,15 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A8.025 | U/UTP | 6A | 0,25 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A8.05 | U/UTP | 6A | 0,50 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A8.10 | U/UTP | 6A | 1,00 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A8.20 | U/UTP | 6A | 2,00 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A8.30 | U/UTP | 6A | 3,00 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016A8.50 | U/UTP | 6A | 5,00 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N3.015 | U/UTP | 6 | 0,15 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N3.025 | U/UTP | 6 | 0,25 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N3.05 | U/UTP | 6 | 0,50 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N3.10 | U/UTP | 6 | 1,00 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N3.20 | U/UTP | 6 | 2,00 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N3.30 | U/UTP | 6 | 3,00 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N3.50 | U/UTP | 6 | 5,00 | RJ45 8(8) | RJ45 8(8) | Azul | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N4.015 | U/UTP | 6 | 0,15 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N4.025 | U/UTP | 6 | 0,25 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N4.05 | U/UTP | 6 | 0,50 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N4.10 | U/UTP | 6 | 1,00 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N4.20 | U/UTP | 6 | 2,00 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N4.30 | U/UTP | 6 | 3,00 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N4.50 | U/UTP | 6 | 5,00 | RJ45 8(8) | RJ45 8(8) | Verde | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N7.015 | U/UTP | 6 | 0,15 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N7.025 | U/UTP | 6 | 0,25 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N7.05 | U/UTP | 6 | 0,50 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N7.10 | U/UTP | 6 | 1,00 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N7.20 | U/UTP | 6 | 2,00 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N7.30 | U/UTP | 6 | 3,00 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N7.50 | U/UTP | 6 | 5,00 | RJ45 8(8) | RJ45 8(8) | Negro | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N8.015 | U/UTP | 6 | 0,15 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N8.025 | U/UTP | 6 | 0,25 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N8.05 | U/UTP | 6 | 0,50 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N8.10 | U/UTP | 6 | 1,00 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N8.20 | U/UTP | 6 | 2,00 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N8.30 | U/UTP | 6 | 3,00 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
| CLS016N8.50 | U/UTP | 6 | 5,00 | RJ45 8(8) | RJ45 8(8) | Blanco | 28,00 | 1:1 | 69,00 | 1 |
